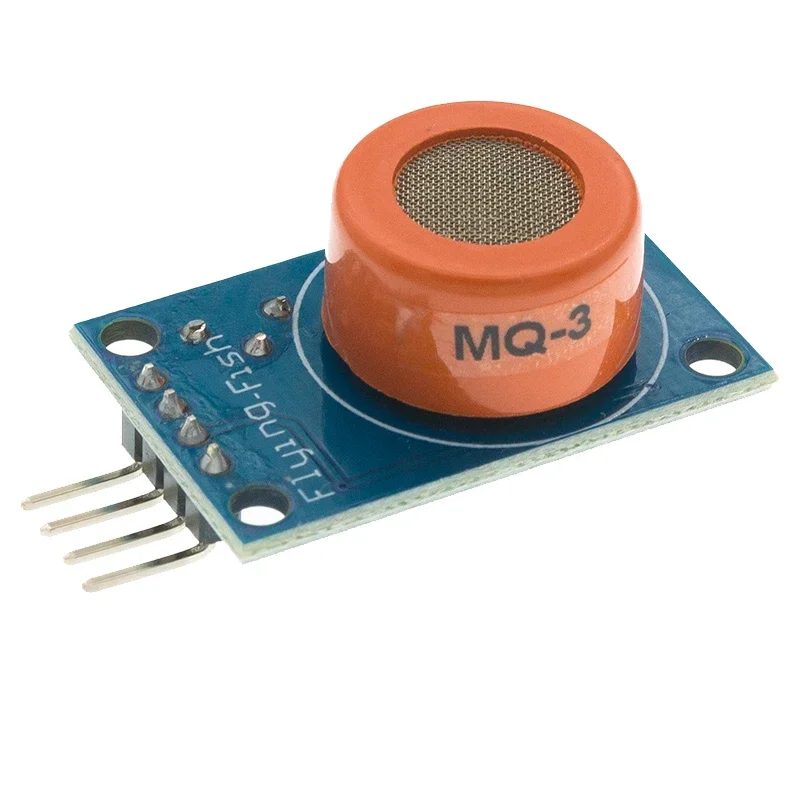

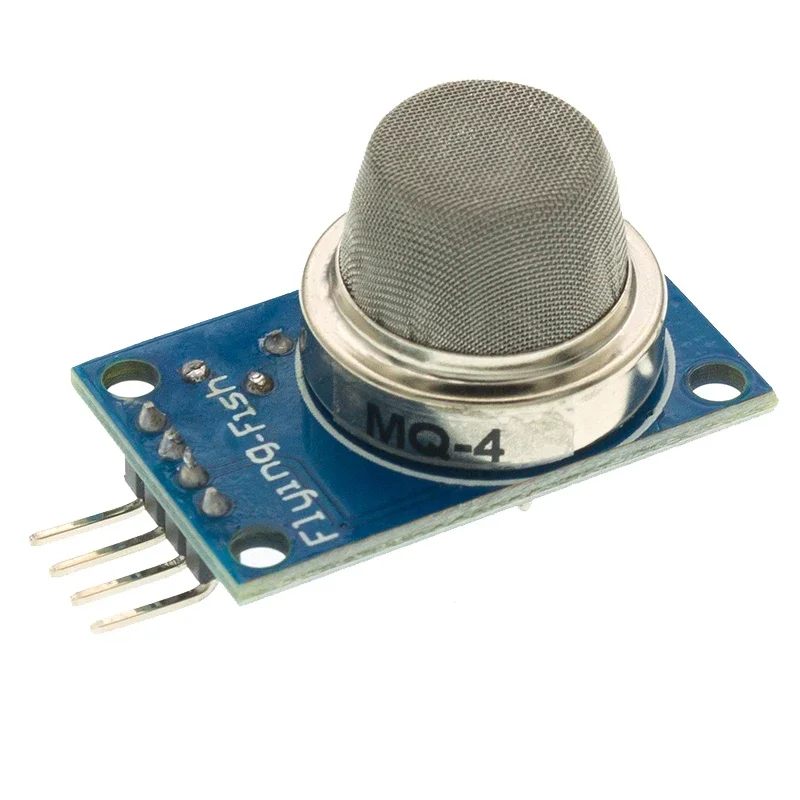

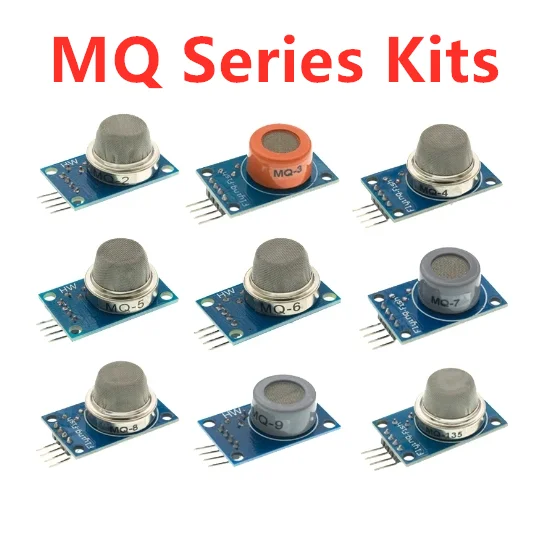

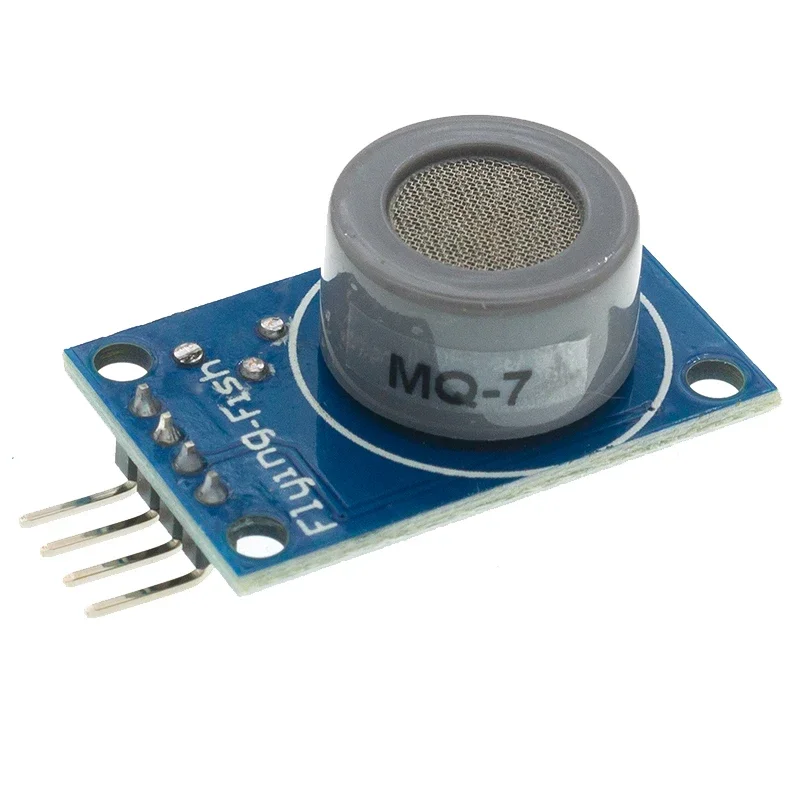

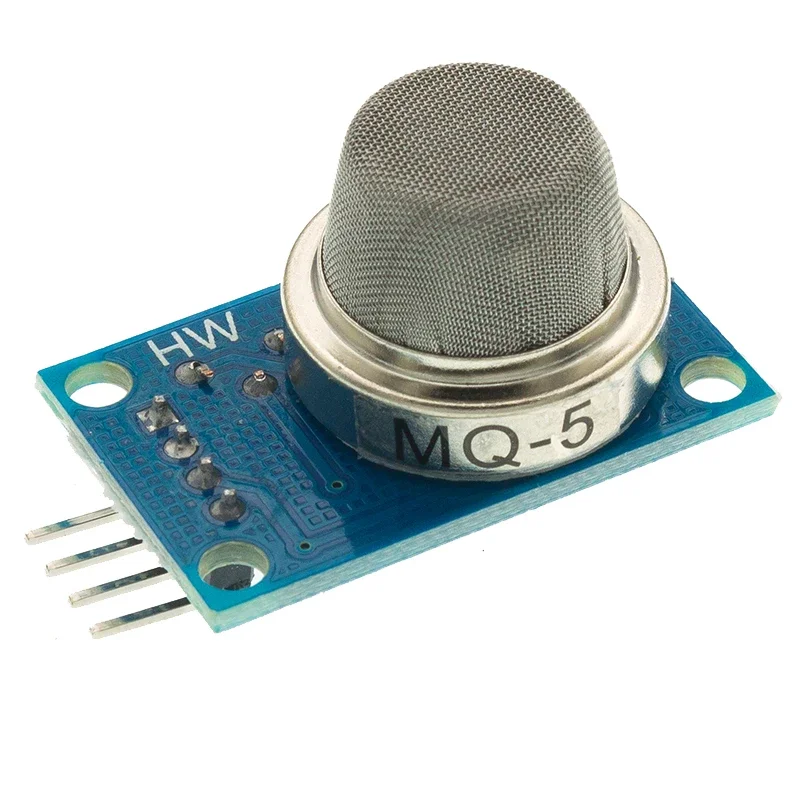

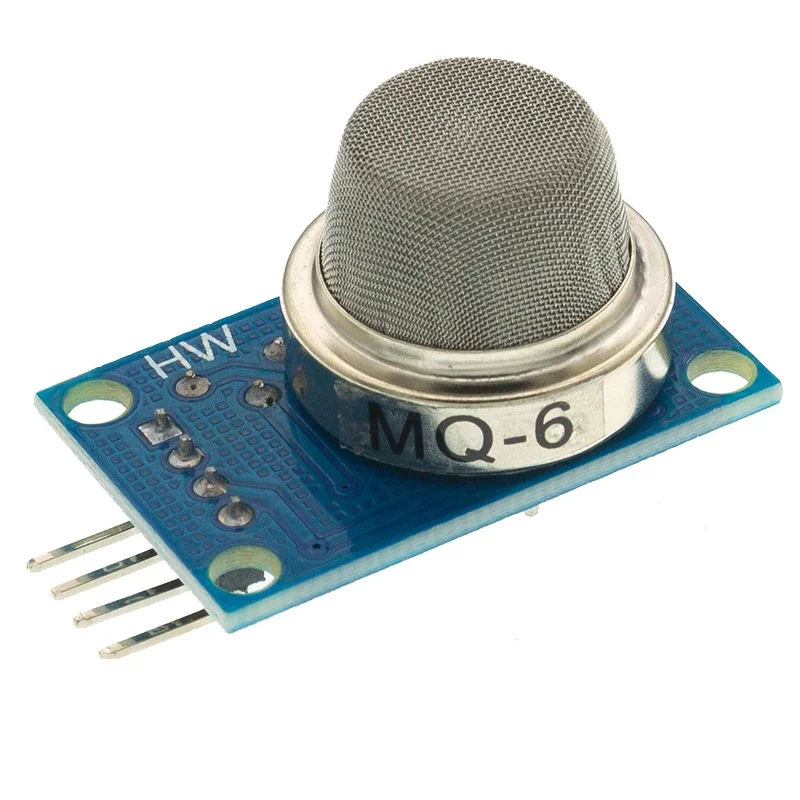

MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module for Arduino Starter DIY Kit
MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module for Arduino Starter DIY Kit - Image 2
MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module for Arduino Starter DIY Kit - Image 3
MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module for Arduino Starter DIY Kit - Image 4
MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module for Arduino Starter DIY Kit - Image 5
MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module for Arduino Starter DIY Kit - Image 6

MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module for Arduino Starter DIY Kit

Rp90.008 – Rp884.070Price range: Rp90.008 through Rp884.070
In Stock
Order on WhatsApp
SKU: 3256807069376334
Category:
Tags: , ,

Description

  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Origin: Mainland China
  • Model Number: MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135
modname=ckeditor

Features:

  • Using high-quality dual-panel design,with power indicator and TTL signal output instructions.
  • The switching signal having a DO (TTL) output and analog output AO.
  • TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
  • Analog output voltage with the higher concentration of higher voltage
  • There are four screw holes for easy positioning.
  • Has a long life and reliable stability
  • Rapid response and recovery characteristic
Input voltage : DC5V Power consumption ( current ): 150mA

DO output : TTL digital 0 and 1 ( 0.1 and 5V)

AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered,needs to warm up around 20S,measured data was stable,heat sensor is a normal phenomenon,because the internal heating wire,if hot is not normal .

Wiring:

  • VCC: positive power supply (5V)
  • GND: power supply is negative
  • DO: TTL switching signal output

  • AO: analog signal output
