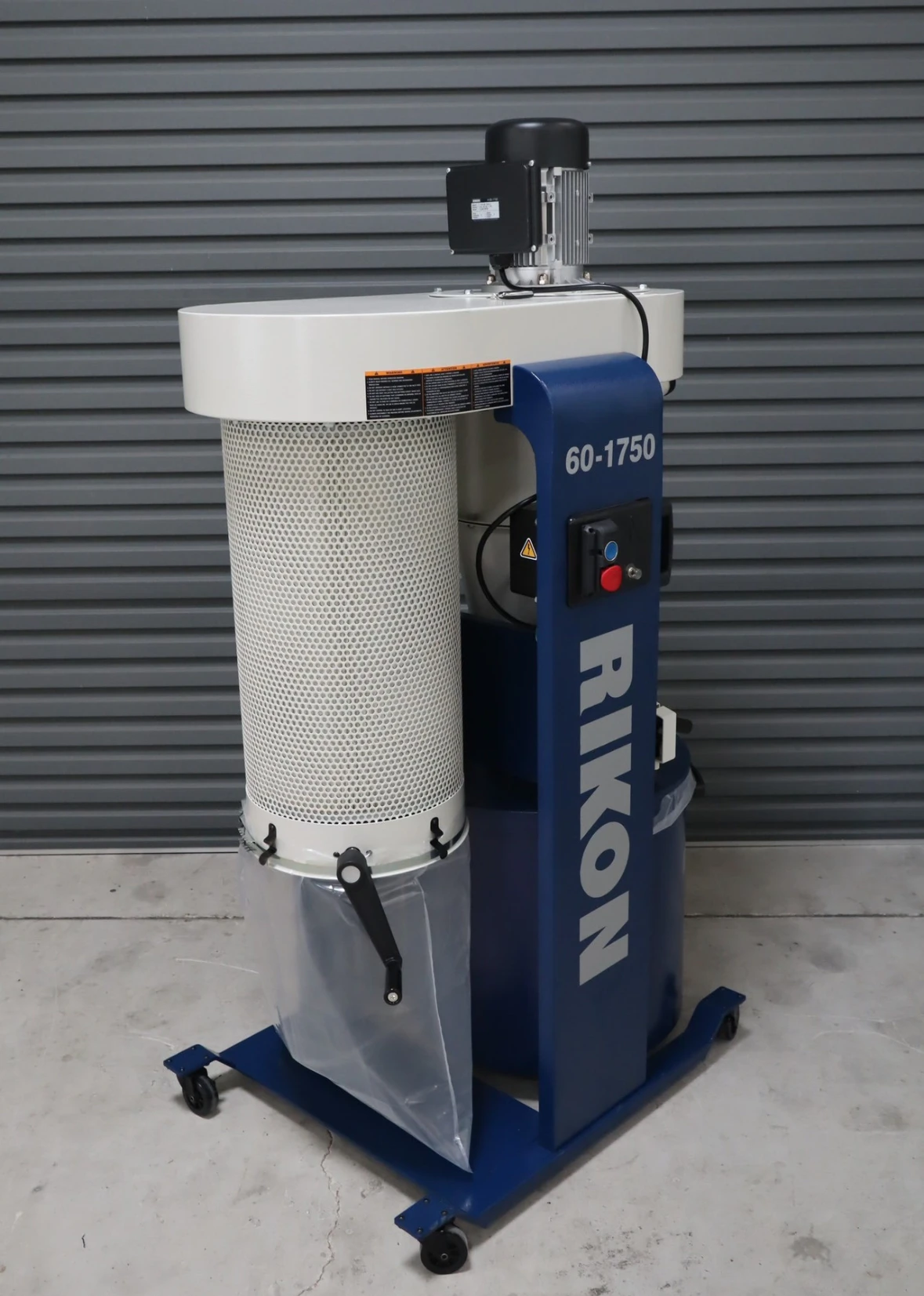

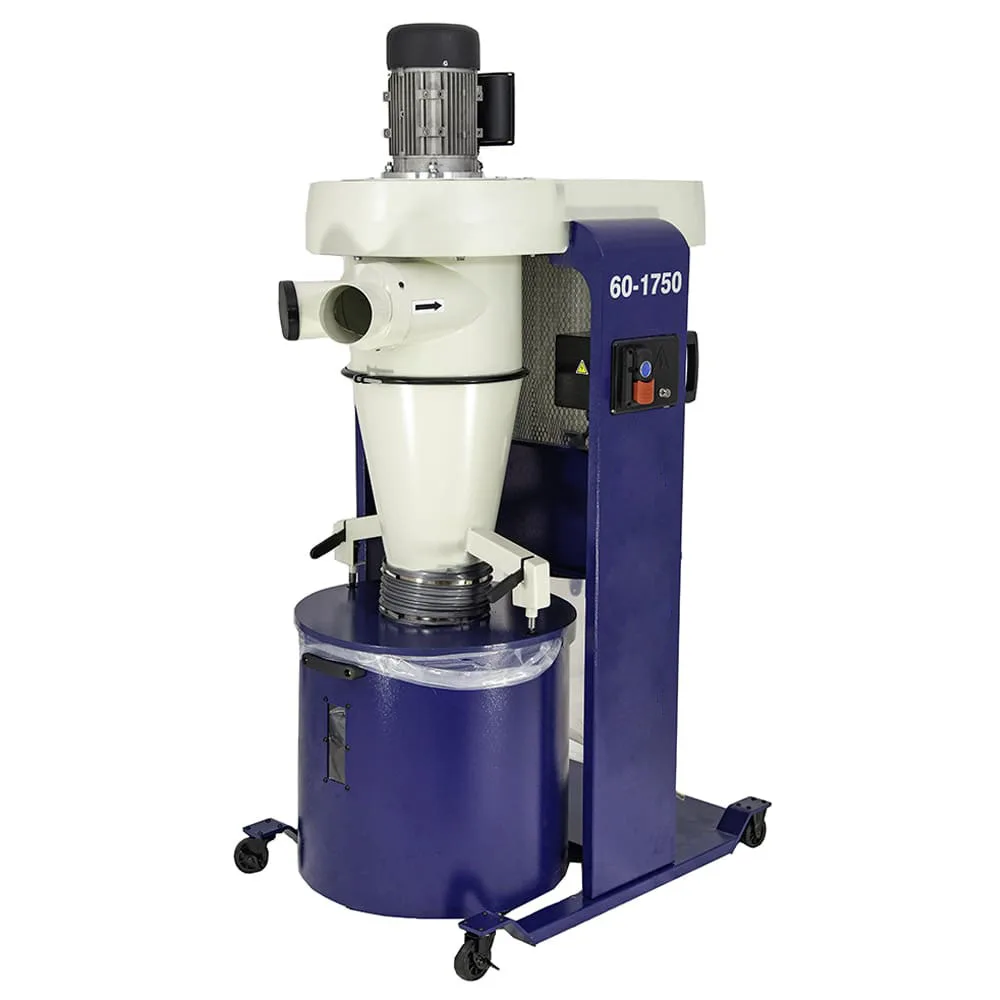

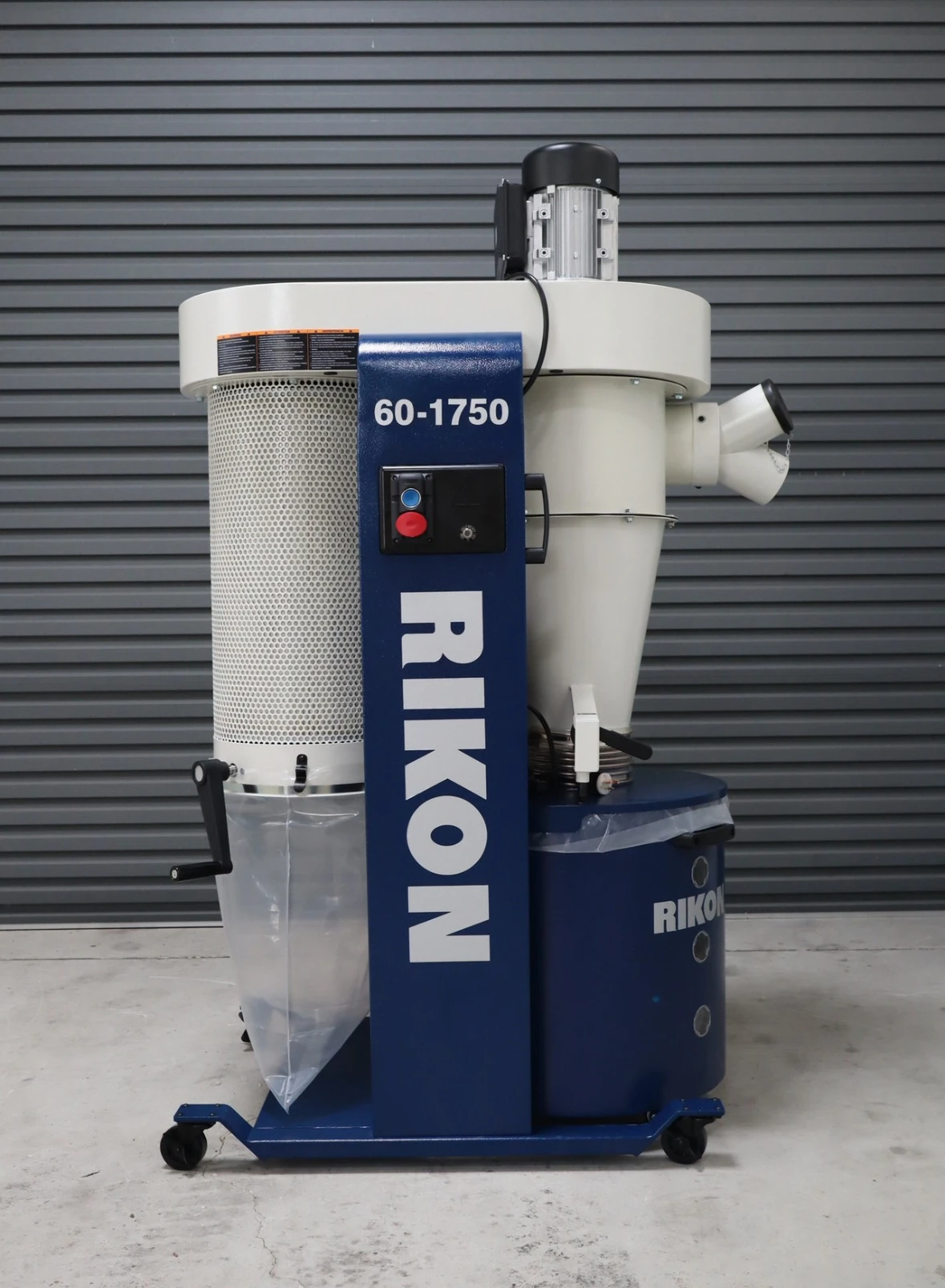

Model 60-1750: 1.75HP Cyclone Dust Collector/Pulse-Jet dust collector
Rp139.189.710
In Stock
This product has been added to 1 people'scarts.
In Stock
Description
- Hign-concerned Chemical: None
- Origin: Mainland China
- Voltage: 220 V
- place of origin: Shandong, China
- brand name: Yobily
- machine type: wood dryer
- video outgoing-inspection: Provided
- machinery test report: Provided
- core components: Engine
- warranty: 1 Year
- weight (kg): 100
- power (kw): 1.5
- Power: 1.5KW
- Filtration accuracy: 0.5 microns
- Weight: 115kgs
- Size: 1140x720x1005mm
Specification
• Dust Collection Keeps Your Shops Air Breathable
• 1.75 HP TEFC Motor
• Casters For Mobility
• 4″ & 6″ Hose Inlet

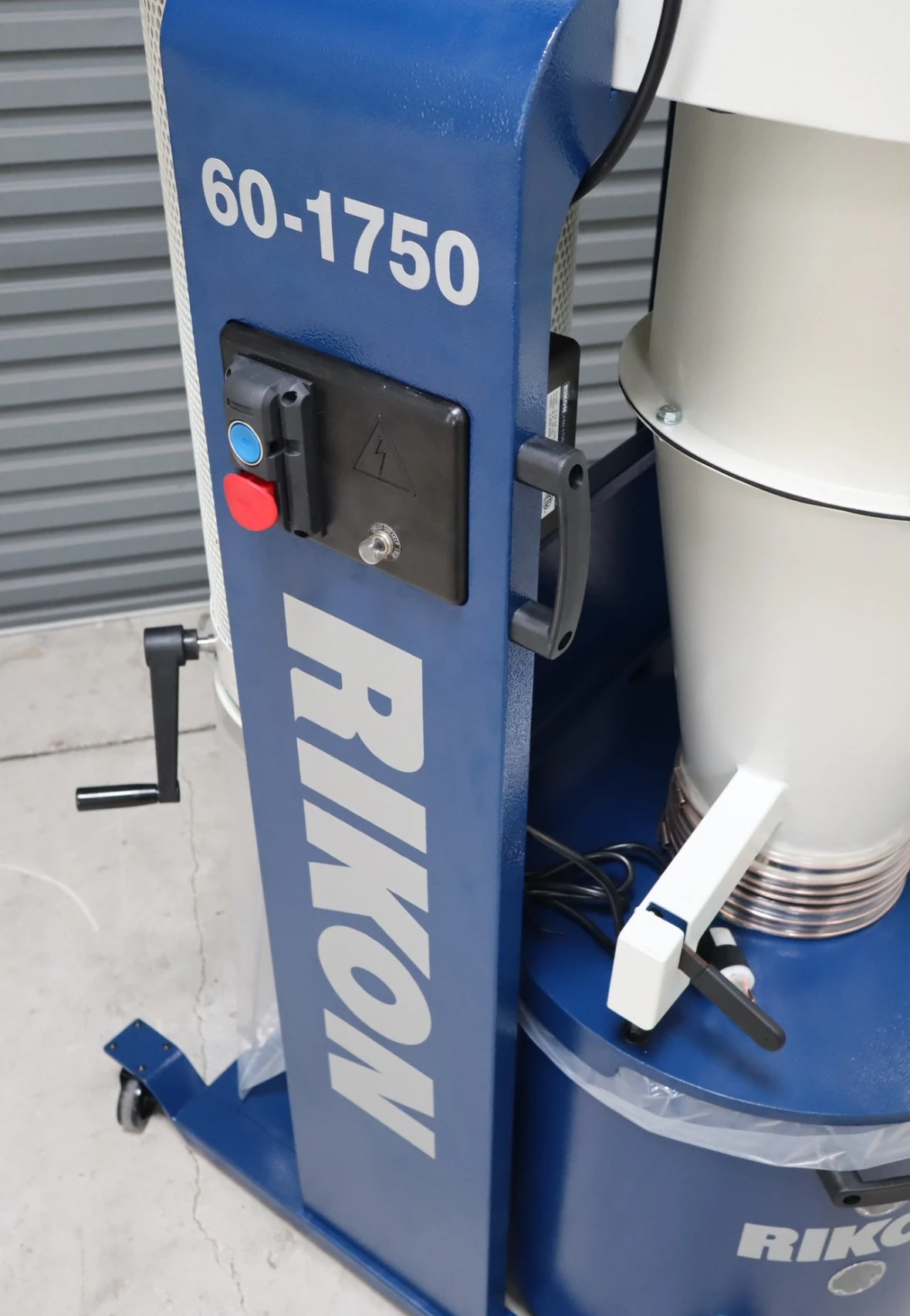

• Safety Lock Toggle Switch

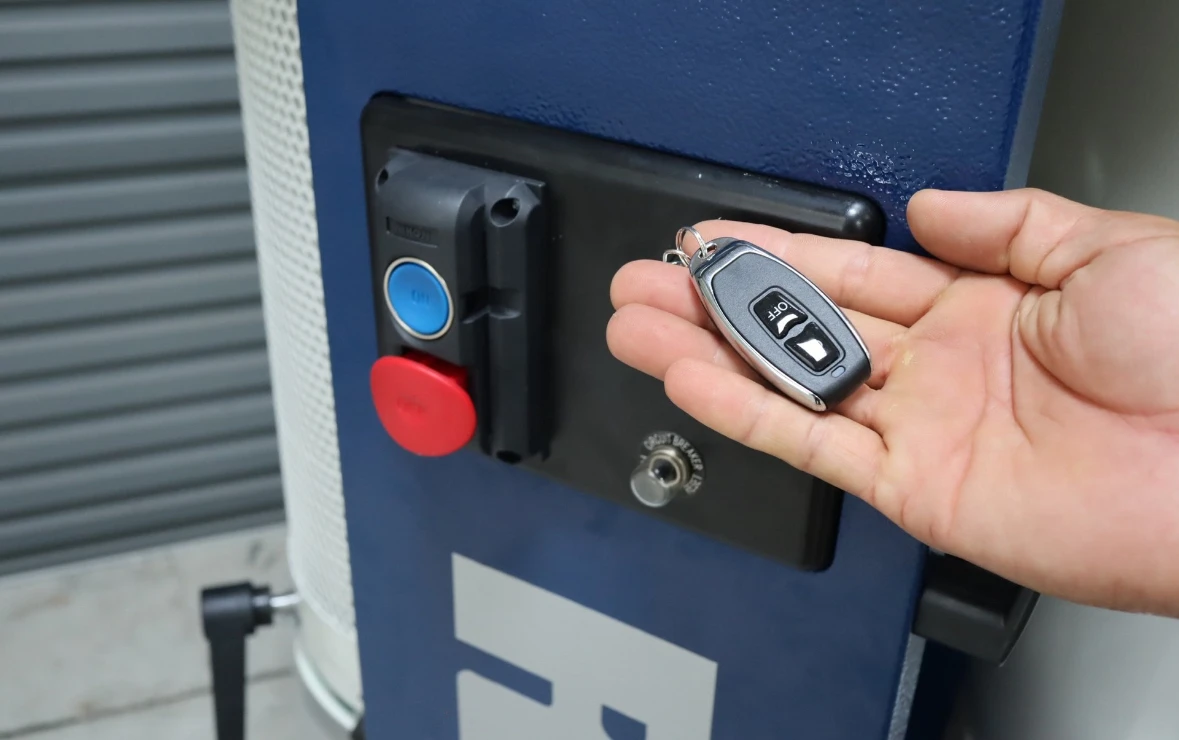

A newly designed impeller that reduces stress on the motor while meeting or exceeding air flow compared to other cyclones in their class. This reduced stress allows the motor to operate cooler, more efficient and has up to 33% less amperage draw on your electrical circuit and up to 33% less cost to operate. The new impeller design, with less weight, will also improve the longevity of the motor. Each unit is also equipped with remote control start functions that operate on Bluetooth® RF band technology which increases range and ability to operate the unit from a different room.
• 1.75 HP TEFC Motor
• Casters For Mobility
• 4″ & 6″ Hose Inlet
• Safety Lock Toggle Switch
A newly designed impeller that reduces stress on the motor while meeting or exceeding air flow compared to other cyclones in their class. This reduced stress allows the motor to operate cooler, more efficient and has up to 33% less amperage draw on your electrical circuit and up to 33% less cost to operate. The new impeller design, with less weight, will also improve the longevity of the motor. Each unit is also equipped with remote control start functions that operate on Bluetooth® RF band technology which increases range and ability to operate the unit from a different room.
|
Motor Horsepower
|
1.75 HP TEFC
|
|
Motor Amps
|
12
|
|
Motor Volts
|
115, 60Hz
|
|
Motor RPM
|
3,450
|
|
Blower Wheel Diameter
|
12.5” (310mm) Diameter
|
|
Blower Wheel Material
|
Steel
|
|
Air Flow @ 4″ Diameter
|
900CFM
|
|
Static Pressure (Water Column)
|
9.5” Inch WC
|
|
Sound Rating @ 3 Feet
|
<81.6 dB
|
|
Cannister Filtration
|
1 Microns
|
|
Bag Diameter
|
14” (356mm) x 27-15/16” (709mm)
|
|
Bag Capacity
|
2 Cu. Ft
|
|
Bag Length
|
21-3/16” (538mm)
|
|
Hose Connection
|
1 @ 6”, 2 @ 4”
|
|
Overall Height
|
68” (1725mm)
|
|
Overall Width
|
28” (715mm)
|
|
Overall Length
|
44” (1120 mm)
|
|
Overall Net Weight
|
203 lbs. (92 Kg.)
|
Product Description
Company Profile
Established in 2012, we are a leading manufacturer specializing in high-performance, custom industrial dust collection systems.
With a strong focus on precision engineering and flexible manufacturing, we provide tailor-made solutions for factories worldwide,
ensuring cleaner and safer working environments.
鉁� Bespoke Designs – Every system is engineered to match your specific requirements.
鉁� Low MOQ – Accept single-unit orders with no compromise on quality.
鉁� End-to-End Service – From consultation to installation support.
With a strong focus on precision engineering and flexible manufacturing, we provide tailor-made solutions for factories worldwide,
ensuring cleaner and safer working environments.
鉁� Bespoke Designs – Every system is engineered to match your specific requirements.
鉁� Low MOQ – Accept single-unit orders with no compromise on quality.
鉁� End-to-End Service – From consultation to installation support.
———————————————————————————————————————————-
Our Expertise
鉁� Custom Dust Collectors – Designed for woodworking, metalworking, chemical, pharmaceutical, and food processing industries.
鉁� Advanced Filtration – High-efficiency cartridge, baghouse, cyclone, and wet scrubber systems.
鉁� Turnkey Solutions – Includes ductwork design, airflow optimization, and compliance with international standards (OSHA, EPA, CE).
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
1. What types of dust collectors do you offer? We specialize in custom-built dust collection systems, including: Baghouse Dust Collectors (for fine particulate) Cartridge Dust Collectors (compact, high-efficiency) Cyclone Dust Separators (pre-filtration for heavy dust) Wet Scrubbers (for explosive or sticky dust) Centralized Dust Extraction Systems (multi-point collection) 2. Can you customize dust collectors for specific industries? Yes! Our systems are engineered for: 鉁� Woodworking (sawdust, MDF, plywood) 鉁� Metalworking (grinding, welding fumes) 鉁� Pharmaceutical/Chemical (powder processing) 鉁� Food Processing (flour, sugar, starch) 3. What’s your minimum order quantity (MOQ)? MOQ = 1 unit – We accept single-machine orders with full customization. 4. How do you ensure filtration efficiency? HEPA filters (up to 99.97% @ 0.3μm) Pulse-jet cleaning (auto-cleaning for sustained airflow) Explosion-proof options (ATEX compliance for combustible dust) 5. What’s the lead time for production? Standard models: 3–10 days Custom systems: 30–45 days (depending on complexity)
6. Do you provide installation support? Yes, we offer: 3D layout drawings (for ductwork planning) Remote commissioning guidance (via video call) On-site installation (optional, extra cost) 7. What certifications do your products have? CE (EU compliance) ISO 9001 (quality management) NFPA/ATEX (for explosive environments, upon request) 8. How to maintain the dust collector? Replace filters when pressure drop exceeds 6–8″ WC Empty dust bins at 80% capacity Annual motor/fan inspection 9. What’s your warranty policy? 12 months for mechanical parts 6 months for filters (wear-and-tear excluded) 10. How to request a quote? Send us: Dust type & particle size (e.g., wood chips, 50μm) Airflow requirements (CFM or m³/h) Space limitations (if any) We’ll provide a free design proposal within 48 hours.
