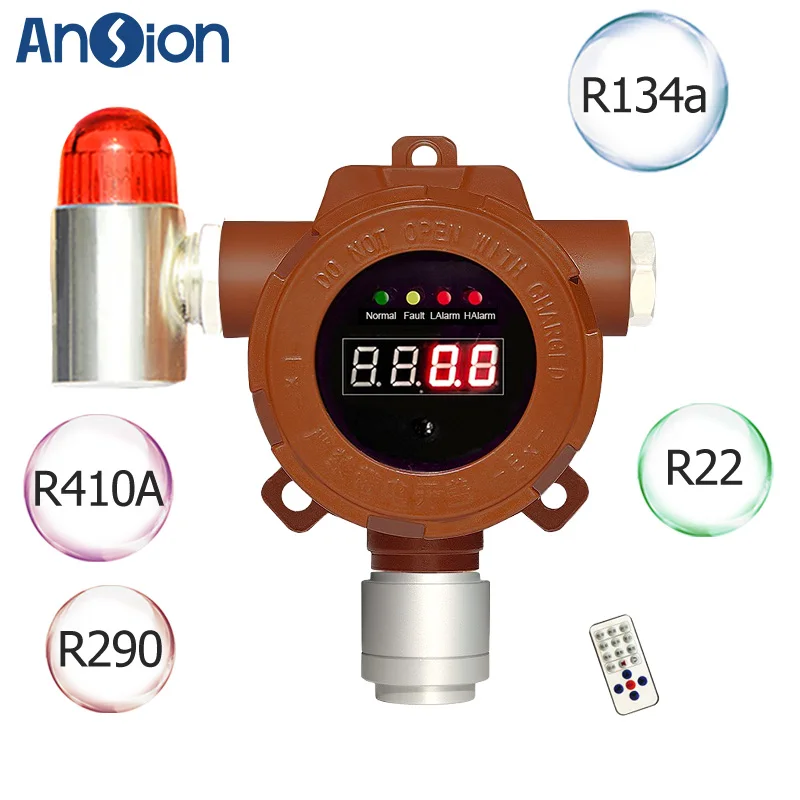

Fixed Refrigerant Gas Leak Detector Freon Leak Alarm R134A R22 R410A R290 Halogen Detector 4-20mA Output HVAC Project
Fixed Refrigerant Gas Leak Detector Freon Leak Alarm R134A R22 R410A R290 Halogen Detector 4-20mA Output HVAC Project - Image 2
Fixed Refrigerant Gas Leak Detector Freon Leak Alarm R134A R22 R410A R290 Halogen Detector 4-20mA Output HVAC Project - Image 3
Fixed Refrigerant Gas Leak Detector Freon Leak Alarm R134A R22 R410A R290 Halogen Detector 4-20mA Output HVAC Project - Image 4
Fixed Refrigerant Gas Leak Detector Freon Leak Alarm R134A R22 R410A R290 Halogen Detector 4-20mA Output HVAC Project - Image 5
Fixed Refrigerant Gas Leak Detector Freon Leak Alarm R134A R22 R410A R290 Halogen Detector 4-20mA Output HVAC Project - Image 6

Fixed Refrigerant Gas Leak Detector Freon Leak Alarm R134A R22 R410A R290 Halogen Detector 4-20mA Output HVAC Project

Rp10.418.595 – Rp25.621.860Price range: Rp10.418.595 through Rp25.621.860
In Stock
Order on WhatsApp
SKU: 3256808569328644
Category:

Description

  • Battery Included: Yes
  • Hign-concerned Chemical: None
  • Measurement Range: 0~1000PPM/ 5000 PPM
  • Model Number: AS03
  • With LCD Screen Or Not: Yes
  • Gas Type: Refrigerant
  • DIY Supplies: Electrical
  • Brand Name: v9
  • Origin: Mainland China
  • Certification: CE
  • Power supply: 24V DC
  • Output signal: 4-20 mA
  • Working environment: -40℃~+70℃, ≤93%RH
  • Protection grade: IP66
  • Explosion-proof Mark: Ex db IIC T6 Gb/ Ex tb IIIC T80℃ Db
  • Enclosure material: Cast Aluminum Alloy
  • Remote control: Yes
  • Alarm relay output: NO/NC COM

● High-quality Semiconductor sensor, anti-smoke, anti-jamming

● Explosion-proof certification Exd IIC T6 Gb, protection grade IP66 (waterproof & dustproof)

● Comply with EMC design standards, resist high-intensity pulse surge current impact, high reliability and stability

● 4-20mA signal output, Sound and light alarm, passive switch output

● Automatically track zero point to prevent drift, temperature compensation, multi-level calibration

● Infrared remote control can realize operation without opening the cover in dangerous places, such as: modify alarm point, address, concentration calibration, zero point calibration
