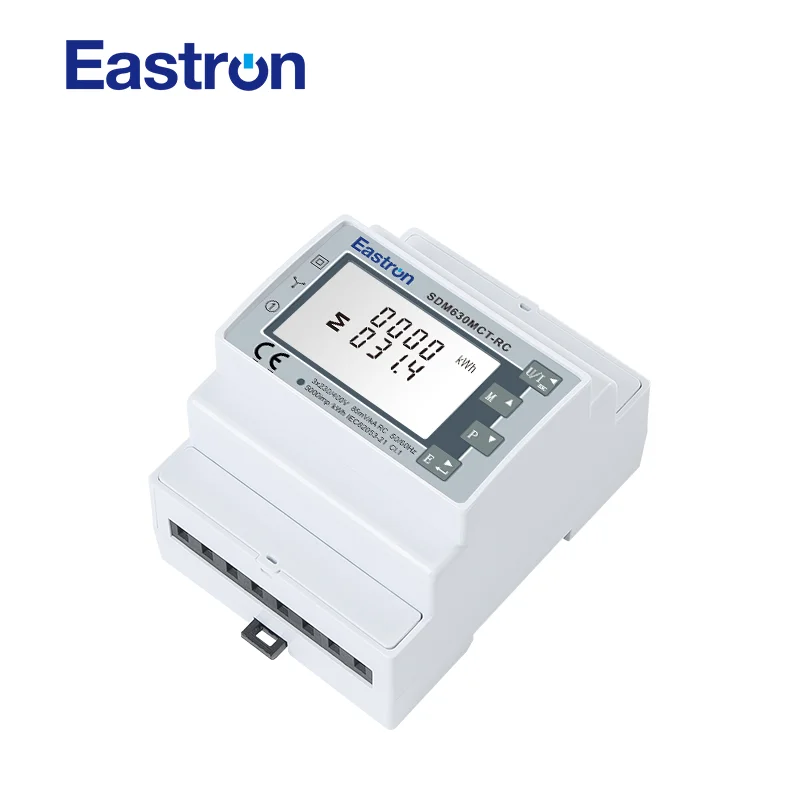

Eastron SDM630MCT-RC Smart Building Electric Meter, Up To 20kA Primary Current LCD Display Rogowski Coil Meter
This product has been added to 8 people'scarts.
Description
- Battery Included: No
- Hign-concerned Chemical: None
- Brand Name: XMSJ
- Origin: Mainland China
- Certification: CE
- Place of Origin: Zhejiang, China
- Brand Name: Eastron
- Model Number: SDM630MCT-RC
- Display Type: Digital Only
- Phase: Three Phase
- Measuring Energy Range: 0 ~ 9999999.9 kWh
- Accuracy Class: Class 1.0 / Class B
- Output Voltage: 3×230/400V
- Operating Temperature: -25°C to +55°C
- Dimensions: 72×94.5x65mm
- CT Type: Rogowski Coil No Need Integrator
- Max.Current: 1000A/5000A/20000A
- CT Secondary: 85mV/KA
- Frequency: 50HZ/60HZ
- Certificate: CE ROHS
- Display: LCD Display
If you have any questions, Please contact our customer service:
WhatsApp：+86 15216425580
Email：[email protected]

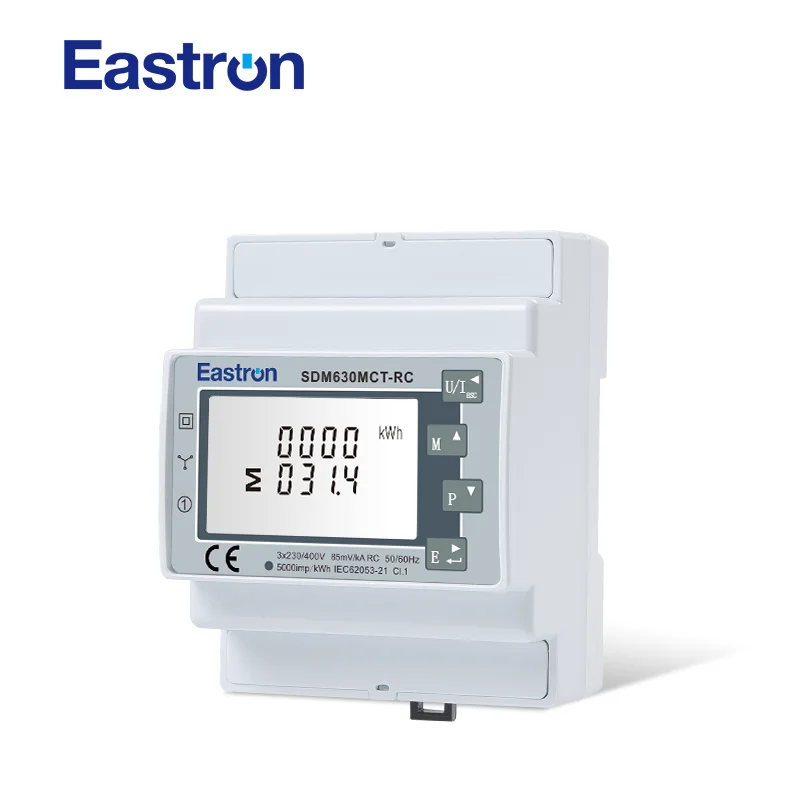

SDM630MCT-RC is innovative in instrument for measurement of the electrical parameter. They are particulary suitable consumption analysis and control, with an excellent quality and stability. The meters directly connected with Rogowski Coil for current measurement, without external integrator. The connections very quick and easy, very useful for retrofitting applications on existing switchboards or energy audit. They are the ideal instrument to establish the measurement points on the plant. The instrument can communication through the RS485 serial port by Modbus or through Ethernet port by Modbus TCP Protocol.

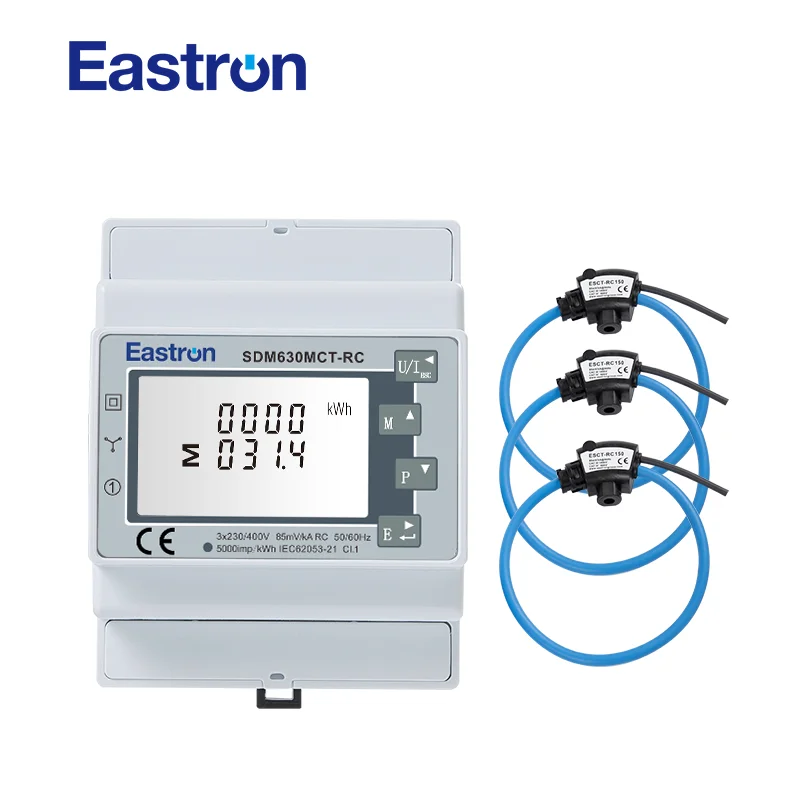

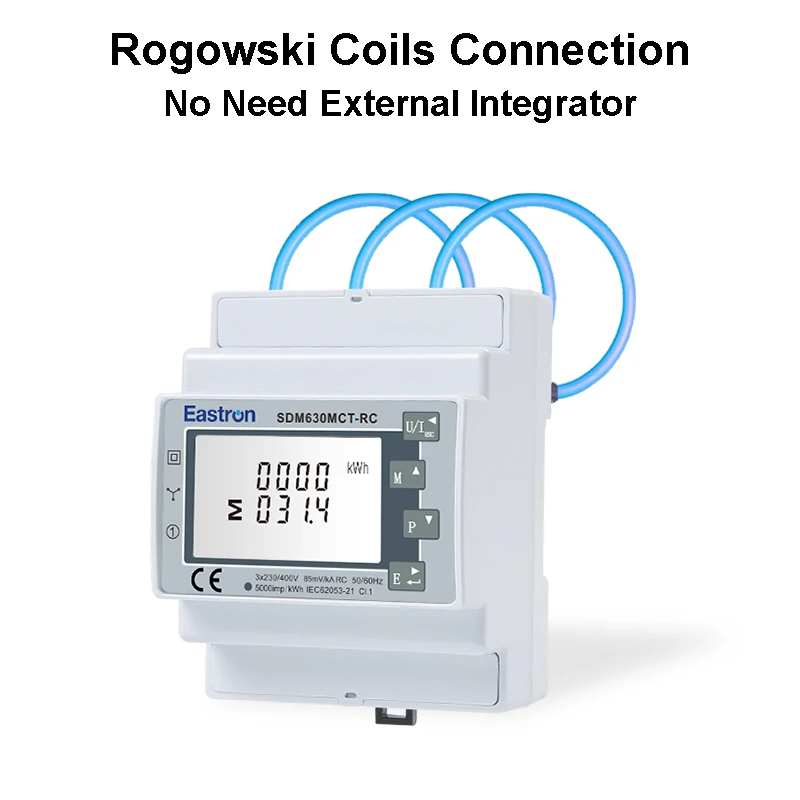

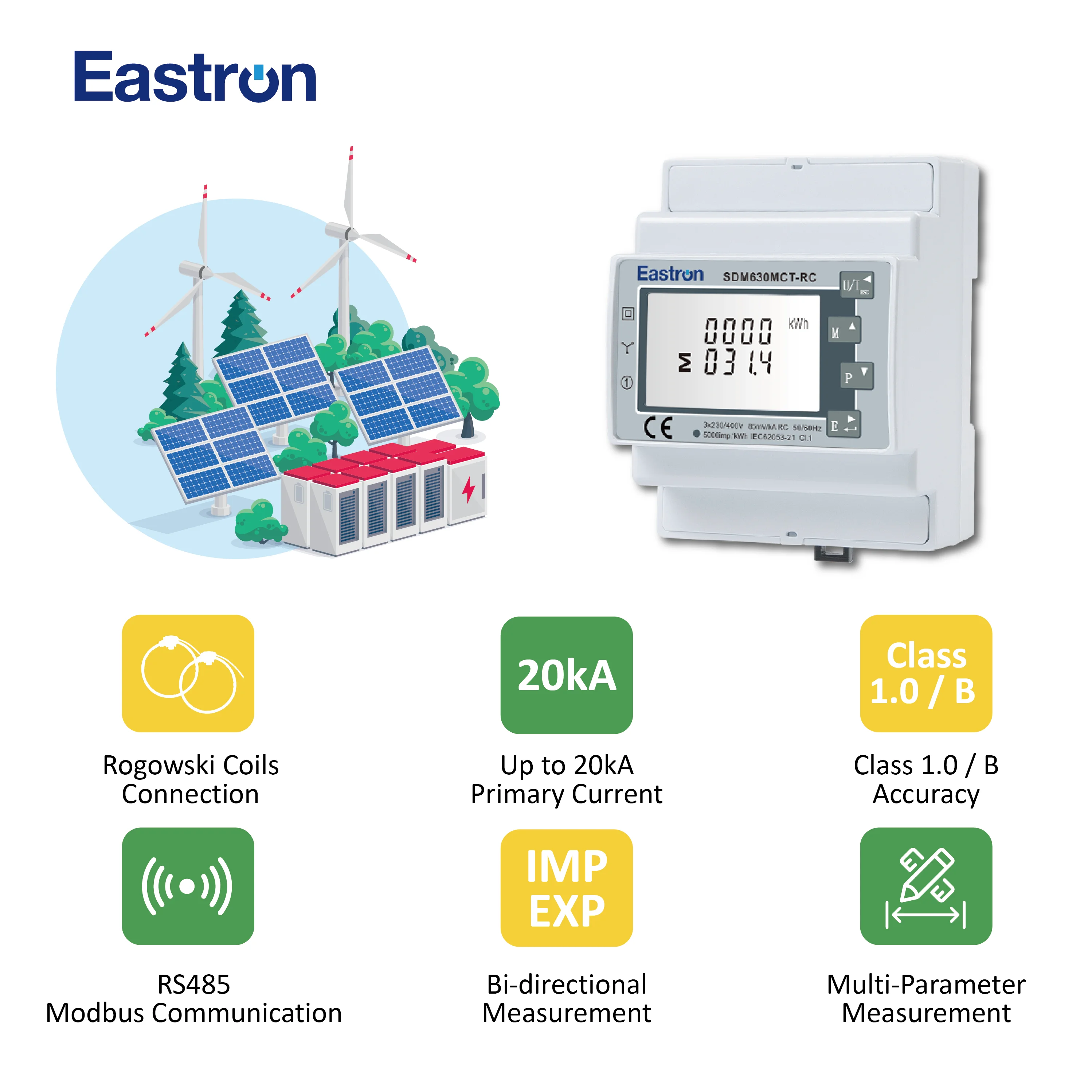

- Rogowski Coil Connection, No Need External Integrator
- Multi-parameters Measurement
- Bi-directional Measurement
- RS485 Modbus Communication
- Up to 20kA Primary current
- Accuracy Class 1.0 / B
- Din Rail Mounting 35mm
- Backlit LCD Display
| Electrical Characteristics | ||
| Type of Measurement | RMS on three phase AC system (3P+N) | |
| Measurement Accuracy | Power | 0.5% of range maximum |
| Active Energy | IEC 62053-21 Class 1.0 | |
| Reactive Energy | IEC62053-23 Class 2 | |
| Frequency | 0.2% of mid-frequency | |
| Current | 0.5% of range maximum | |
| Voltage | 0.5% of range maximum | |
| Power Factor | 1% of unity (0.01) | |
| Input & Output | |||
| Input | Current | CT Secondary | 85mV/kA |
| CT Primary | 1kA/5kA | ||
| Voltage | Rated Voltage (Un) | 230V L-N / 120V L-N | |
| Operational Voltage | 80%~120% of Un | ||
| Output | RS485 Modbus | ||
| RS485 Modbus Communications | |
| Communication Address | 1~247 |
| Transmission Distance | 1000m Maximum |
| Transmission Speed | 1200bps~38400bps |
| Parity | None (default), Odd, Even |
| Stop Bits | 1 or 2 |

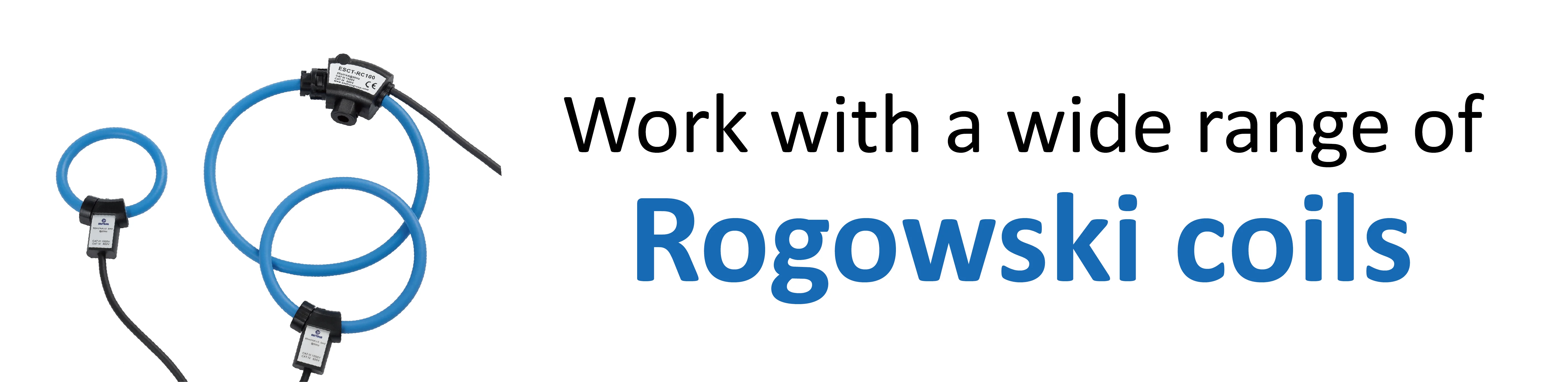

| Coil Code | Reference Rated Current | Class |
Window Size (mm) |
Coil Length (mm) |
| ESCT-RC60 | 500A | 0.5 | 50 | 200 |
| ESCT-RC100 | 1000A | 0.5 | 100 | 395 |
| ESCT-RC150 | 5000A | 0.5 | 150 | 525 |
* Please click the coil code to check the details for Rogowski Coils, any further concerns, welcome to contact us!
Q: Can I ask for samples?
A: Yes, for sample orders, please order from our online shop.
Q: What’s the warranty of your products?
A: All products have a two-year warranty.
Q: What’s the lead time?
A: Depend on the quantity and model of the order, normally it takes around 10-15 days, but the exact lead time should be discussed with our sales.
Q: Where can I get a user manual?
A: User manual can be downloaded from our offical website: www.eastrongroup.com
Q: Do you have software?
A: We offer simple software for testing, you can get it from our online shop.
Q: Can you offer Modbus protocol instruction / Modbus register map?
A: Yes, we have and welcom contact us.
