Acrel ADL3000 Bidirectional Din Rail 3 Phase Solar Power Meter Rs485 Modbus-RTU Pairing Solis Inverter Zero Export Device
Rp6.249.788 – Rp12.118.343Price range: Rp6.249.788 through Rp12.118.343
In Stock
Description
- Battery Included: No
- Hign-concerned Chemical: None
- Dimensions: 127*88*70mm
- Operating Temperature: -25℃~+55℃
- Accuracy Class: 0.5S
- Measuring Energy Range: 0-99999.9kwh
- Phase: Three Phase
- Model Number: DTSD1352/ADL3000
- Power Supply: AC
- Display Type: LCD
- DIY Supplies: Electrical
- Brand Name: ACREL
- Origin: Mainland China
- Certification: CE
- Measuring Voltage Range: 3*100V,3*380V,3*57.7/100V,3*220/380V
- Measuring Current Range: 3*1(6)A,3*10(80)A
- Reference frequency: 45-60Hz
- Communication: RS485 (MODBUS-RTU) and Infrared
- Measurement: kWh&kVarh
- Display: 8 bits section LCD display
- Installation: din rail mount
- Warranty: 2 Years
- Wiring: 3 phase 3 wires, 3 phase 4 wires
- Range of communication address: Modbus RTU1-247
- Model: ADL3000/DTSD1352
- Brand: Acrel

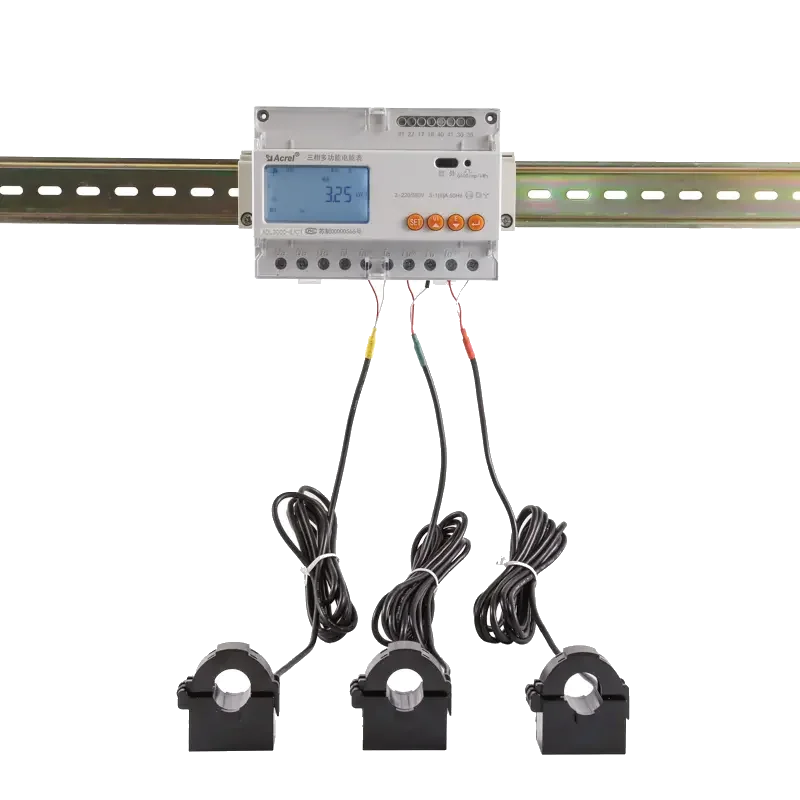

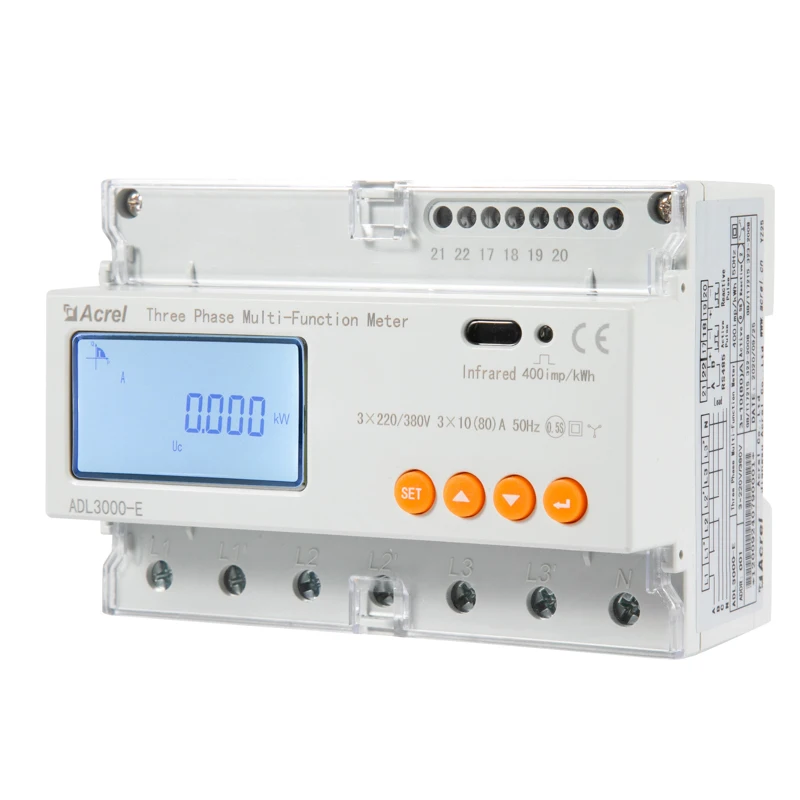

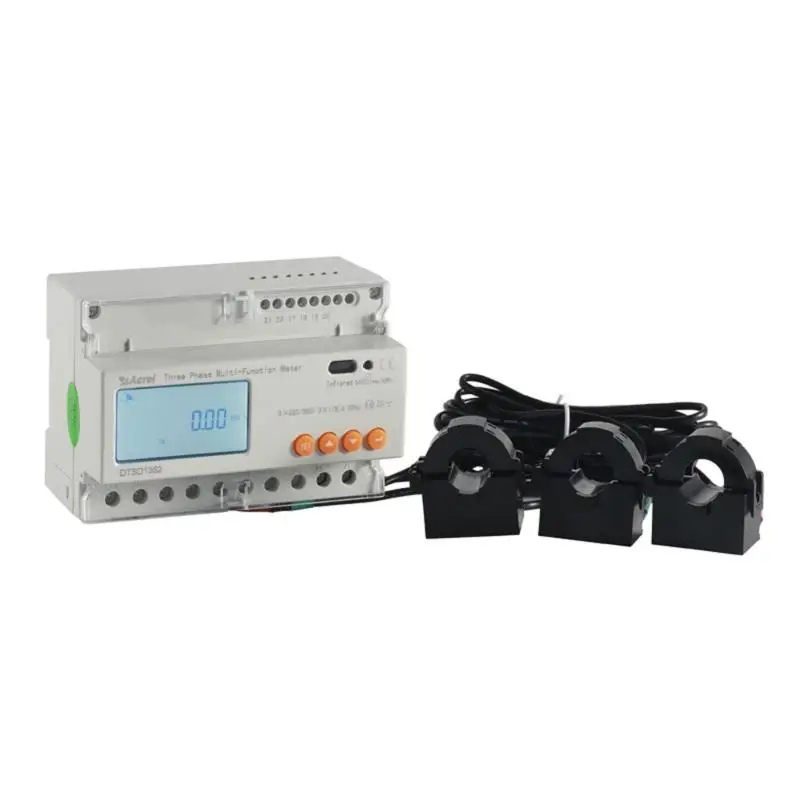

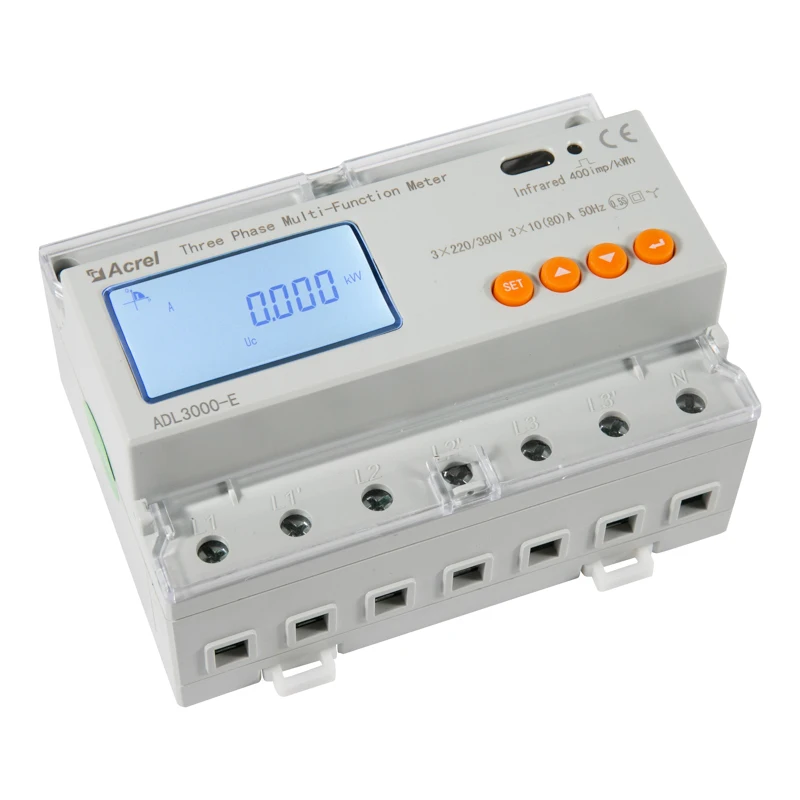

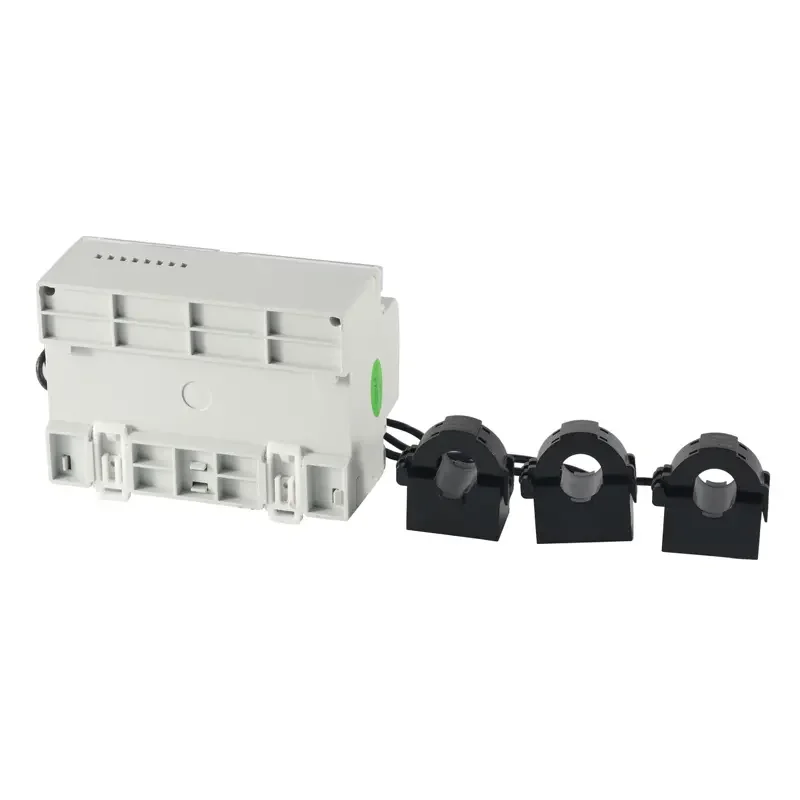

Three-phase Multi-function DIN Rail Energy Meter
Notice: If you need to use it with the inverter zero export, please remark your inverter brand and model when place the order. Otherwise, we will produce as normal RS485 meter program.
It is a smart meter designed for power supply systems, industrial and mining enterprises, and utilities to calculate electricity consumption and manage electric demand. It features high precision, a small size, and simple installation.
|
Picture |
Specification |
Optional |
|
|
● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
● Voltage Rating: 3×220/380V, 3×57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
● Current Rating: 3×10(100)A; 3×1(6)A;3×10(80)A
● Frequency: 45~65Hz
● Communication: RS485 (MODBUS-RTU) and Infrared
● Display: LCD (8 digits)
● Dimension: 127*88*70mm (L*W*H)
● Wiring: 3-phase 4wire; 3-phase 3-wire
● Installation: 35mm DIN Rail
● Standard&Certificate: IEC; CE; EAC
|
● 1DO/1DI ● Secondary RS485 (MODBUS-RTU) ● Multi-rate: Spike, Peak, Valley, and Flat kWh
● three channels temperature measurement(NTC)
● 2-31st harmonic
|
